1. Brief introduction
Air slide is a kind of pneumatic and conveying equipment that is widely used to convey dry and powder material. It is used to convey cement and raw material powder here. Air slide is characterized by easy maintenance, good sealing, no noise, safe operation, low electric consumption, convenient to divert. It is widely used to charge and discharge at multi-points because there is no driving parts for it. The main part of air slide is ventilated layer. Air slide use a new type ventilated layer of PET-6 (terylene) compound fiber textile, which is It is characterized by high temperature resistant (centigrade150), anti-corrosive, anti-abrasion, low moisture absorption, light weight, level surface and long life.

2. Technical capacity
Conveyed material: water content≤1%, temperature≤150℃ dry and powder material
Conveyed capacity: when conveying cement and raw material, the capacity is as the
following:

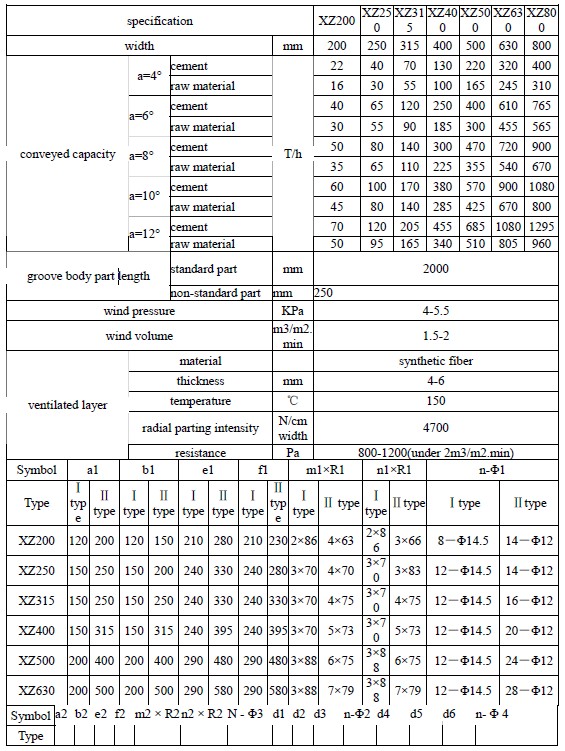

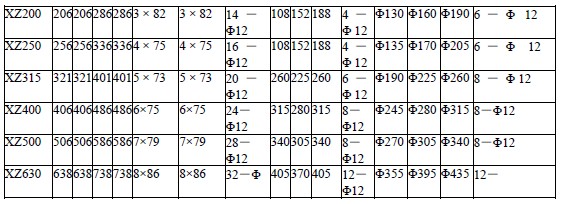

3. Technical parameter
